Verilog 논리 연산자

Verilog는 원하는 논리 연산을 수행하기 위해 논리 AND, OR 및 부정 연산자를 지원합니다. 논리 연산자는 연산이 끝날 때 단일 비트 값을 반환하는 데 사용됩니다.



다음 표는 논리 연산자의 기능적 사용을 설명합니다.

Operator Name Functionality
&& Logical AND To perform logical AND on two binary operands
|| Logical OR To perform logical OR on two binary operands
! Logical negation To perform logical negation for the given binary number

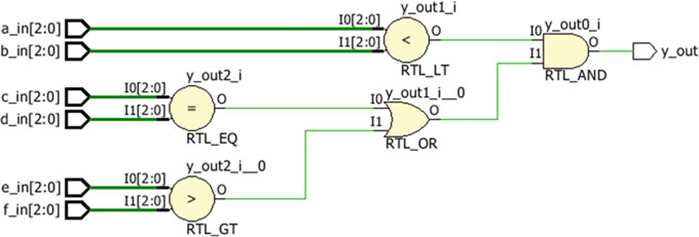

module logical_operators( input [2:0] a_in, b_in,c_in,d_in,e_in, f_in, output reg y_out );
always@ (a_in, b_in, c_in,d_in,e_in,f_in)
begin
  if
( (a_in < b_in) && ((c_in ==d_in) || (e_in > f_in)))
    y_out = 1;
  else
    y_out =0;
  end
endmodule





Verilog 등식 및 부등식 연산자

Verilog 동등 연산자는 두 피연산자를 비교한 후 참 또는 거짓 값을 반환하는 데 사용됩니다.



다음 표는 연산자의 기능을 설명합니다.

Operator Name Functionality
== Case equality To compare the two operands
!= Case inequality Used to find out inequality for the two operands
! Logical negation To perform logical negation for the given binary number

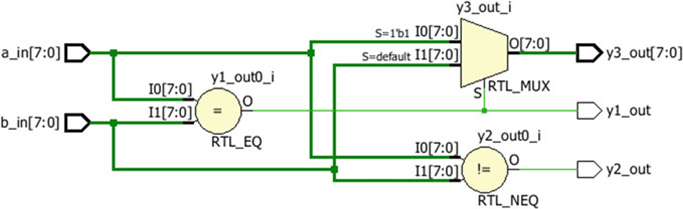

module Equality_operator(

input [7:0] a_in, b_in,
output reg y1_out, y2_out,
output reg [7:0] y3_out );

always@ (a_in, b_in )
begin
  // use of equality operator
  y1_out = (a_in == b_in);


  // use of inequality operator
  y2_out = (a_in != b_in);


// use of operator in if condition
 if ( a_in ==b_in)
   y3_out =a_in;
 else
   y3_out = b_in;
 end
endmodule





Verilog 서명 연산자

Verilog는 연산자 양수 '+' 또는 '-'를 지원하여 피연산자에 부호를 할당합니다.



다음 표는 부호 피연산자를 설명합니다.

Operator Name Functionality
+ Unary sign plus To assign positive sign to singular operand
- Unary sign minus To assign negative sign to singular operand

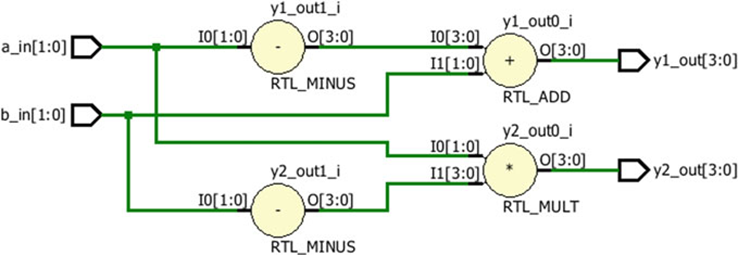

module sign_operators (

input [1:0] a_in, b_in,
output reg [3:0] y1_out, y2_out
);


always@ (a_in, b_in )
begin
  // use of sign operator
  y1_out = (-a_in) + b_in;

// use of sign operator
y2_out = a_in * (-b_in);

end
endmodule





Verilog 비트 연산자

Verilog는 비트 연산을 지원합니다. 논리 비트 연산자는 두 개의 단일 또는 다중 비트 피연산자를 사용하고 다중 비트 값을 반환합니다. Verilog NAND, NOR를 지원하지 않습니다.



다음 표는 비트 연산자의 기능과 사용을 설명합니다.

Operator Name Functionality
& Bitwise AND To perform bitwise AND on two binary operands
| Bitwise OR To perform bitwise OR on two binary operands
^ Bitwise XOR To perform bitwise XOR on two binary operands



module bit_wise_operators (

input [6:0] a_in,
input [5:0] b_in,
output reg [6:0] y_out );

always@ (a_in, b_in )
begin
  // bit wise AND
  y_out[0] = a_in[0] & b_in[0];
  // bit wise NAND
  y_out[1] = !( a_in[1] & b_in[1]);
  // bit wise OR
  y_out[2] = a_in[2] | b_in[2];
  // bit wise NOR
  y_out[3] = !( a_in[3] | b_in[3]);
  // bit wise XOR
  y_out[4] = a_in[4] ^ b_in[4];
  // bit wise XNOR
  y_out[5] = ( a_in[5] ~^ b_in[5]);
  // bit wise NOT
  y_out[6] = ! a_in[6];
end
endmodule
